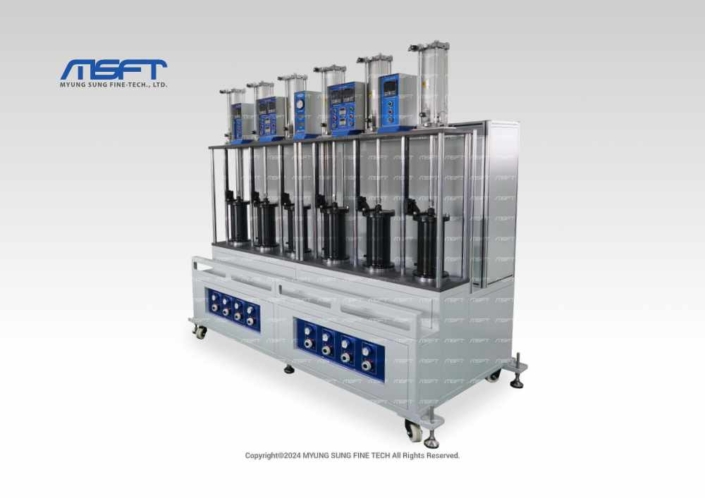

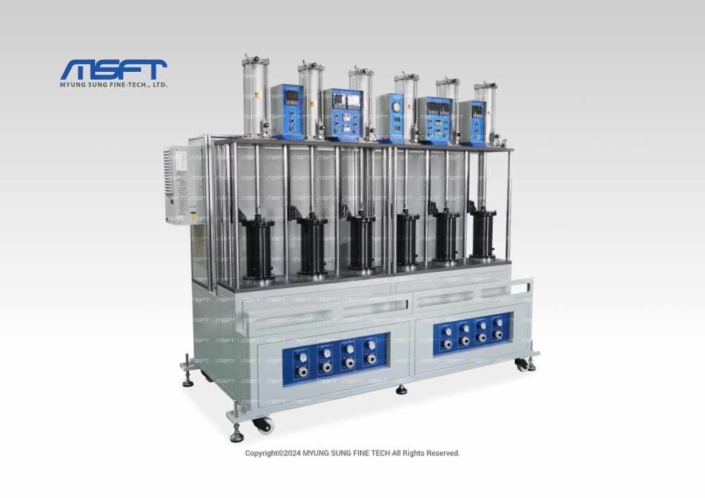

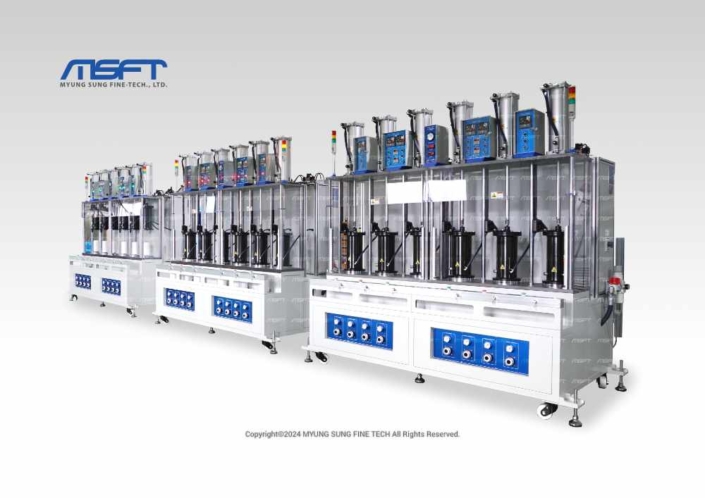

Manual Dry Leak Tester
– 6 Stations (Heavy-Duty)
This leak tester is a type in which the worker manually performs the loading and unloading of the filters. It is mainly suitable for heavy-duty filters or small quantity production lines of various kinds.
SPECIFICATION
| Type | Manual Screw Fixture System |
| Test Filter Size | ∅65 to ∅120, 320 mm |
| Main Air Pressure | 6 bar |
| Test Air Pressure | 4 bar ~ 5 bar |
| Test Capacity | 270 ~ 480pcs/hr |
| Leaking Detection Value | Total Test Time(1 Cycle) : 45 sec Leak Checking Time : 10 sec Detection Range : 5mmAq, 0.5cc/ 10 sec |
| Power Source | 220V, 1 Phase |
MSFT YouTube

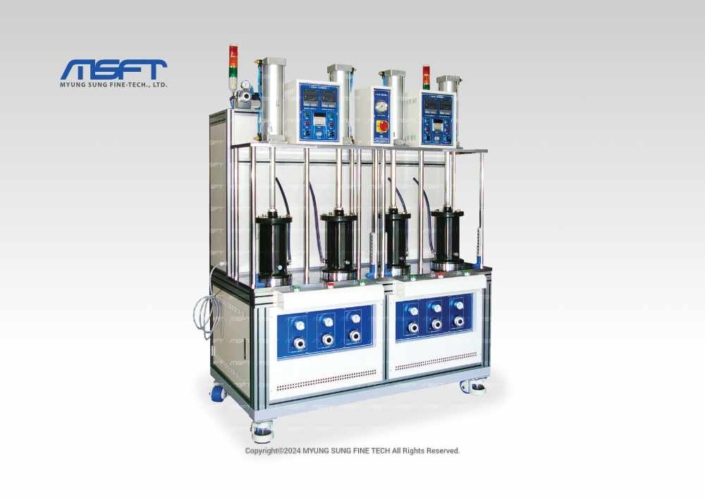

Manual Dry Leak Tester 4stations
– 4 Stations
This leak tester is a type in which the worker manually performs the loading and unloading of the filters. It is mainly suitable for heavy-duty filters or small quantity production lines of various kinds.
SPECIFICATION
| Type | Manual Screw Fixture System |
| Test Filter Size | ∅100 ~ ∅125, 150 ~ 300 (H)mm |
| Main Air Pressure | 6 bar |
| Test Air Pressure | 4 bar ~ 5 bar |
| Test Capacity | 180 ~ 320pcs/hr |
| Leaking Detection Value | Total Test Time(1 Cycle) : 45 sec Leak Checking Time : 10 sec Detection Range : 5mmAq, 0.5 cc |
| Power Source | 220V , 1 Phase |
MSFT YouTube
