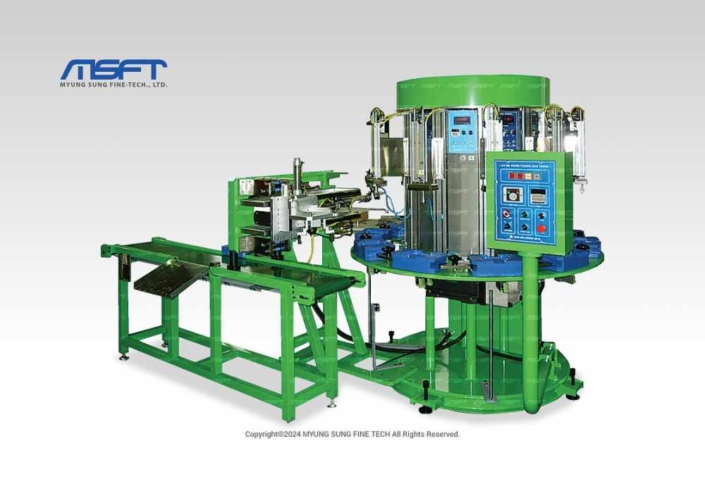

Auto T/M Filter Vacuum Leak Tester
– 10 Stations
This equipment is designed for leakage testing of filters for automotive transmissions.
It conducts vacuum testing and consists of 10 stations, making it suitable for mass production lines.
It is possible to test various products by changing jigs according to the production schedule.
SPECIFICATION
| Type | Index Turn Table System – Semi Auto |
| Test Filter | Auto Transmission Filter |
| Main Air Pressure | 6 bar |
| Test Vacuum Pressure | -330 mmHg (MAX. -500 mmHg) |
| Test Capacity | 450 pcs/hr |
| Leaking Detection Value | Total Test Time(1 Cycle) : 80 sec Leak Checking Time : 60 sec Detection Range : -30 ~ -150 mmHg/min |
| Power Source | 220V/ 380V, 3 Phase |
Auto T/M Filter Vacuum Leak Tester
– 4 Stations
This equipment is designed for leakage testing of filters for automobile transmissions.
It performs vacuum testing and consists of 4 stations. It is possible to test various products by changing the jigs according to the production schedule.
SPECIFICATION
| Type | Air Cylinder Fixture System – Manual |
| Test Filter | Auto Transmission Filter |
| Main Air Pressure | 6 bar |
| Test Vacuum Pressure | -500 mmHg (MAX. -550 mmHg) |
| Test Capacity | 160 ~ 200 pcs/hr |
| Leaking Detection Value | Total Test Time(1 Cycle) : 80 sec Leak Checking Time : 60 sec Detection Range : -30 ~ -150mmHg/30sec |
| Power Source | 220V, 3 Phase |

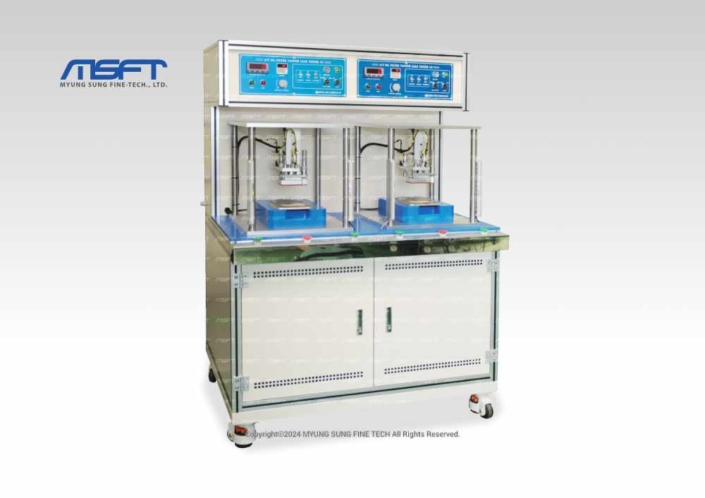

Auto T/M Filter Vacuum Leak Tester
– 2 Stations
This equipment is designed for leakage testing of filters for automotive transmissions.
It performs vacuum testing and consists of two stations. It is possible to test various products by changing the jig according to the production schedule.
SPECIFICATION
| Type | Air Cylinder Fixture System – Manual |
| Main Air Pressure | 6 bar |
| Test Vacuum Pressure | -330 mmHg (MAX. -500 mmHg) |
| Test Capacity | 80 ~ 100 pcs/hr |
| Leaking Detection Value | Total Test Time(1 Cycle) : 80 sec Leak Checking Time : 60 sec Detection Range : -30 ~ -150 mmHg/min |
| Power Source | 220V, 1 Phase |
